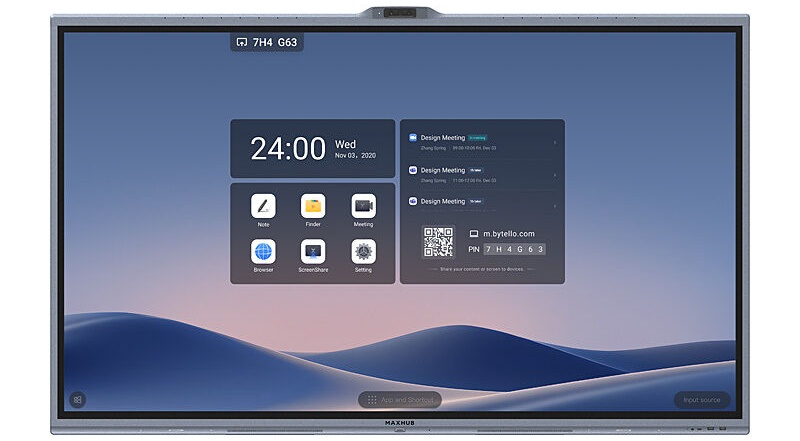

The 75 inch interactive whiteboard for boardrooms.
Every voice gets heard and every seat sees clearly.
75 inches of 4K UHD smart board clarity on a VA panel with deep 5000:1 contrast.
AI camera that frames the active speaker, mic array tuned for ambient noise.
Built for boardrooms of up to twelve people.
The 75 inch XBoard V7 pairs the VA panel (5000:1 contrast, 6.5 ms) with enough screen for a full boardroom table to read from the far end.
Combined with the AI Trident camera system, 16 mic array and 50 point touch, it is built for boardrooms and executive meeting rooms where visiting clients are in the room.
Delivery, wall mounting, network and software setup and staff training.
Choose your Windows PC module. One is supplied with every panel and it is charged in the same payment.
Order online today and pay once. Your panel, professional installation and Windows PC module are charged together in the same checkout.
GST of 10 percent is added at checkout. One order, one payment, one receipt.
Need more than one panel? Online checkout covers a single panel. Tell us how many rooms you are fitting out and we will come back with volume pricing within one business day.
Get My Quote in 24 HoursStill comparing? Send the full specification sheet to your IT team or finance approver before you decide.
Download My Spec SheetKey Specifications
- Screen Size 75" (VA Panel, 5000:1 contrast, 6.5 ms)
- Resolution 4K UHD (3840 x 2160), 350 nits, Delta E ≤ 1.5
- Touch Points 50 simultaneous points, ≤ 2.5 ms response
- Operating System MAXHUB OS 7.0 with MT71 Windows PC module
- Connectivity 2× HDMI IN, 2× USB 3.0, USB Type C, RS232, RJ45, Wi-Fi 6, Bluetooth 5.2 See every port
- Speakers 2.1 stereo, 40W total (2×10W + 20W sub)
- Camera 3× 50MP AI Trident (auto frame, speaker track)
- Microphones 16 mic array, 180° pickup, 15 m range
Ideal For
- Boardrooms (8 to 12 people)
- Hybrid meeting rooms
- Executive meeting rooms
- Meeting rooms and collaboration spaces
- Client presentations
Final pricing depends on panel size, installation scope, and optional accessories.
Ports and connectivity
Every port, wireless link and control option on this 75 inch interactive whiteboard.
It is an all in one interactive flat panel, so screen, camera, microphones and PC work as one unit.
- 2 x HDMI IN
- 1 x USB 2.0
- 2 x USB 3.0
- 1 x USB Type C
- 1 x Touch 2.0
- 1 x Audio IN
- 1 x Audio OUT
- 1 x RS232
- 1 x RJ45 LAN IN, for a wired network cable
- 1 x PC module slot
- 1 x Wi-Fi module slot
Plug a laptop into HDMI and the Touch 2.0 port, and you can run it from the screen.
Touch works with Windows, macOS, Android, Linux and Chrome OS.
- Wi-Fi 6 on 2.4 GHz and 5 GHz
- Bluetooth 5.2
- Wireless screen sharing with MAXHUB Share, AirPlay, Miracast and Chromecast
Guests can share a laptop or phone screen wirelessly.
No cable needed.
- RS232 and IP control
- Works with Crestron, Extron and Q-SYS control systems
- Supports Microsoft Intune device management
RS232 and IP control let your AV team run this panel from the room controller they already use.
Tempered glass, with an anti glare finish.
- 3 mm, 9H tempered glass, rated for scratch resistance
- Zero parallax, so ink lands right under the pen tip
- Anti glare surface with 25 percent haze to cut reflections from windows and lights
The 75 inch V7550 uses a VA panel with 5000:1 contrast and 6.5 ms response time.
- 3840 x 2160 4K Ultra HD LCD at 60 Hz
- 350 nits of brightness
- Covers 90 percent of the NTSC colour range, with 1.07 billion colours at 10 bit
- Colour accuracy of Delta E 1.5 or better, so colours stay true to the original
- 178 degree viewing angle
- Panel life of over 50,000 hours, rated for 16 hours a day
The infrared touchscreen reads up to 50 touch points at the same time.
- Infrared touchscreen with 50 simultaneous touch points
- Accuracy of plus or minus 0.5 mm
- Touch response of 2.5 ms or faster
- Palm rejection, so a resting hand leaves no marks
- Sharp Erase for natural rubbing out
- Handwriting recognition, which turns handwriting into typed text
- Write annotations over any app or document
Ready to order?
Buy online now or request a custom quote for volume pricing.
Designed to Impress in Executive Spaces
Make Every Boardroom Meeting Look Polished
The 75 inch VA panel delivers 5000:1 contrast, among the deepest blacks and most vivid colours in the XBoard V7 range.
Detailed charts, video playback and creative work look the way they were meant to, not washed out or muddy, even from the far end of the table.
No Awkward Camera Angles
Walk in and start your meeting.
The AI Trident camera with three 50MP lenses tracks whoever is speaking, frames the whole group, and zooms in on the active presenter.
Your remote colleagues see faces, not foreheads or the back wall.
Everyone in the Room Gets Heard
The 16 microphone array picks up voices from every seat with crystal clarity. AI noise cancellation strips out keyboard taps, air con hum, and corridor noise so remote attendees never miss a word.
Start Meetings in One Tap
Teams, Zoom, Webex, and Google Meet are all one click away from the home screen.
No fumbling with adapters, no waiting for IT, no joining late.
Present Without Cables or Setup
Sonic Share uses ultrasonic technology to mirror your laptop in seconds, no Wi-Fi or pairing needed.
Or plug in your own laptop and run the meeting from there while the panel handles the camera, microphone, and speakers automatically.
Three Years of Worry Free Operation
Backed by a 3 year advanced replacement warranty with local Australian support. ENERGY STAR certified for low running costs, IP5X dust resistant, and TÜV certified flicker free with low blue light to protect eyes during long sessions.
Need help choosing the right size?
Talk to a product specialist. No obligation.
Not sure this is the right size for your room?
Frequently Asked Questions
It features a VA panel with 5000:1 contrast ratio, built in AI Trident camera system, 16 microphone array, 50 touch points, and 4K UHD display.
Designed for boardrooms and executive meeting rooms.
This means deeper blacks and more vivid image quality for video content and presentations.
The XBoard V7 offers one click access to Teams, Zoom, Webex, and Google Meet.
It also supports running meetings from your own laptop while the panel handles AV (this feature is called BYOM, or Bring Your Own Meeting). Plus Sonic Share, Miracast, AirPlay, and Chromecast.
We offer flexible lease terms with set monthly payments and warranty coverage included, subject to credit approval.
Lease payments may be tax deductible, so check with your accountant.
Included:
- Delivery to your premises
- Professional wall mounting
- Network configuration
- Software setup
- Initial system configuration
- Staff training to ensure your team is comfortable using the panel
Contact us to confirm installation availability in your area.
Every XBoard V7 supplied by GDS is built with a MAXHUB MT71 Series Windows PC module, so the panel works as a full Windows PC from day one.
You choose which processor:
- Intel Core i5
- Intel Core i7
Get a Quote for the MAXHUB XBoard V7 V7550 (75")
Tell us about your requirements and we will come back to you with tailored pricing within one business day.
