The 86 inch interactive whiteboard for large boardrooms.
Makes remote feel like the same room.
4K UHD smart board clarity on a wide angle IPS panel that reads sharply from every seat.
AI Trident camera and a 16 mic array with 15 metre voice pickup.
Built for large boardrooms and all hands spaces of up to twenty people.

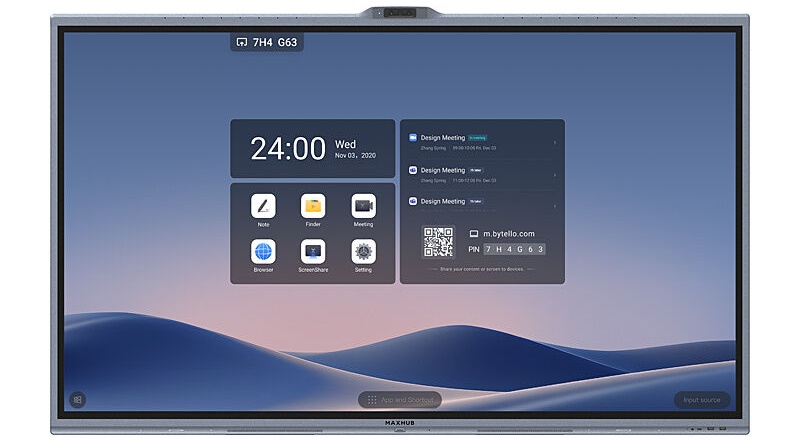

The largest XBoard V7 at 86 inches fills large boardrooms and all hands spaces with 4K visually immersive content.
Its IPS panel delivers wide viewing angles so everyone sees accurate colour from every seat, while the AI Trident camera and 16 mic array ensure remote participants experience the room as if they were there.
Delivery, wall mounting, network and software setup and staff training.
Choose your Windows PC module. One is supplied with every panel and it is charged in the same payment.
Order online today and pay once. Your panel, professional installation and Windows PC module are charged together in the same checkout.
GST of 10 percent is added at checkout. One order, one payment, one receipt.
Need more than one panel? Online checkout covers a single panel. Tell us how many rooms you are fitting out and we will come back with volume pricing within one business day.
Get My Quote in 24 HoursStill comparing? Send the full specification sheet to your IT team or finance approver before you decide.
Download My Spec SheetKey Specifications
- Screen Size 86" (IPS Panel, 1200:1 contrast, wide viewing angles)
- Resolution 4K UHD (3840 x 2160), 350 nits, Delta E ≤ 1.5
- Touch Points 50 simultaneous points, ≤ 2.5 ms response
- Operating System MAXHUB OS 7.0 with MT71 Windows PC module
- Connectivity 2× HDMI IN, 2× USB 3.0, USB Type C, RS232, RJ45, Wi-Fi 6, Bluetooth 5.2 See every port
- Speakers 2.1 stereo, 40W total (2×10W + 20W sub)
- Camera 3× 50MP AI Trident (auto frame, speaker track)
- Microphones 16 mic array, 180° pickup, 15 m range
Ideal For
- Large meeting rooms (up to 20 people)
- All hands and town hall spaces
- Multi room and multi site deployments
- Hybrid conferencing with remote participants
- Organisations standardised on Teams, Zoom, or Webex
Final pricing depends on panel size, installation scope, and optional accessories.
Ports and connectivity
Every port, wireless link and control option on this 86 inch interactive whiteboard.
It is an all in one interactive flat panel, so screen, camera, microphones and PC work as one unit.
- 2 x HDMI IN
- 1 x USB 2.0
- 2 x USB 3.0
- 1 x USB Type C
- 1 x Touch 2.0
- 1 x Audio IN
- 1 x Audio OUT
- 1 x RS232
- 1 x RJ45 LAN IN, for a wired network cable
- 1 x PC module slot
- 1 x Wi-Fi module slot
Plug a laptop into HDMI and the Touch 2.0 port, and you can run it from the screen.
Touch works with Windows, macOS, Android, Linux and Chrome OS.
- Wi-Fi 6 on 2.4 GHz and 5 GHz
- Bluetooth 5.2
- Wireless screen sharing with MAXHUB Share, AirPlay, Miracast and Chromecast
Guests can share a laptop or phone screen wirelessly.
No cable needed.
- RS232 and IP control
- Works with Crestron, Extron and Q-SYS control systems
- Supports Microsoft Intune device management
RS232 and IP control let your AV team run this panel from the room controller they already use.
Tempered glass, with an anti glare finish.
- 3 mm, 9H tempered glass, rated for scratch resistance
- Zero parallax, so ink lands right under the pen tip
- Anti glare surface with 25 percent haze to cut reflections from windows and lights
The 86 inch V8650 uses an IPS panel with 1200:1 contrast and 8 ms response time.
- 3840 x 2160 4K Ultra HD LCD at 60 Hz
- 350 nits of brightness
- Covers 90 percent of the NTSC colour range, with 1.07 billion colours at 10 bit
- Colour accuracy of Delta E 1.5 or better, so colours stay true to the original
- 178 degree viewing angle
- Panel life of over 50,000 hours, rated for 16 hours a day
The infrared touchscreen reads up to 50 touch points at the same time.
- Infrared touchscreen with 50 simultaneous touch points
- Accuracy of plus or minus 0.5 mm
- Touch response of 2.5 ms or faster
- Palm rejection, so a resting hand leaves no marks
- Sharp Erase for natural rubbing out
- Handwriting recognition, which turns handwriting into typed text
- Write annotations over any app or document
Ready to order?
Buy online now or request a custom quote for multi room volume pricing.
Built for Large Boardrooms and All Hands Rooms
Visible to Every Seat in a Room of 20
The 86 inch IPS panel delivers wide viewing angles so the back row sees the same vivid image as the front.
No more squinting at the back of large boardrooms or all hands meetings.
No Awkward Camera Angles
Walk in and start.
The AI Trident camera with three 50MP lenses tracks the active speaker, frames the whole room, and zooms intelligently on participants.
Remote attendees see faces and engagement, not a generic wide shot.
Capture Every Voice in a Big Room
The 16 microphone array reaches up to 15 metres with 180 degree pickup, so even attendees at the far end of a long room are heard clearly. AI noise cancellation removes hum, scrape, and background chatter.
Start Meetings in One Tap
Teams, Zoom, Webex, and Google Meet are all one click away from the home screen.
No fumbling with adapters, no waiting for IT.
Walk in, tap, talk.
Present Without Cables or Setup
Sonic Share uses ultrasonic technology to mirror your laptop in seconds, no Wi-Fi or pairing needed.
Or plug in your own laptop and run the meeting from there while the V8650 handles the camera, microphone, and speakers automatically.
Three Years of Worry Free Operation
Backed by a 3 year advanced replacement warranty with local Australian support. ENERGY STAR certified, IP5X dust resistant, and TÜV certified for flicker free viewing and antibacterial surfaces, ideal for high traffic spaces.
Deploying across multiple large rooms?
Talk to a product specialist about volume pricing, multi room rollout, and AV integration.
No obligation.
Not sure this is the right size for your room?
Frequently Asked Questions
It features an IPS panel for wide viewing angles, built in AI Trident camera system, 16 microphone array, 50 touch points, and 4K UHD display.
Designed for large rooms seating up to 20 people.
The 65 and 75 inch models use VA panels with higher 5000:1 contrast for deeper blacks.
AI features include auto framing, speaker tracking, intelligent focus, and video fence.
One click access to Teams, Zoom, Webex, and Google Meet.
Also supports running meetings from your own laptop while the panel handles AV (called BYOM, or Bring Your Own Meeting). Plus Sonic Share, Miracast, AirPlay, and Chromecast.
We offer flexible lease terms with set monthly payments and warranty coverage included, subject to credit approval.
Lease payments may be tax deductible, so check with your accountant.
Included:
- Delivery to your premises
- Professional wall mounting
- Network configuration
- Software setup
- Initial system configuration
- Staff training to ensure your team is comfortable using the panel
Contact us to confirm installation availability in your area.
Every XBoard V7 supplied by GDS is built with a MAXHUB MT71 Series Windows PC module, so the panel works as a full Windows PC from day one.
You choose which processor:
- Intel Core i5
- Intel Core i7
